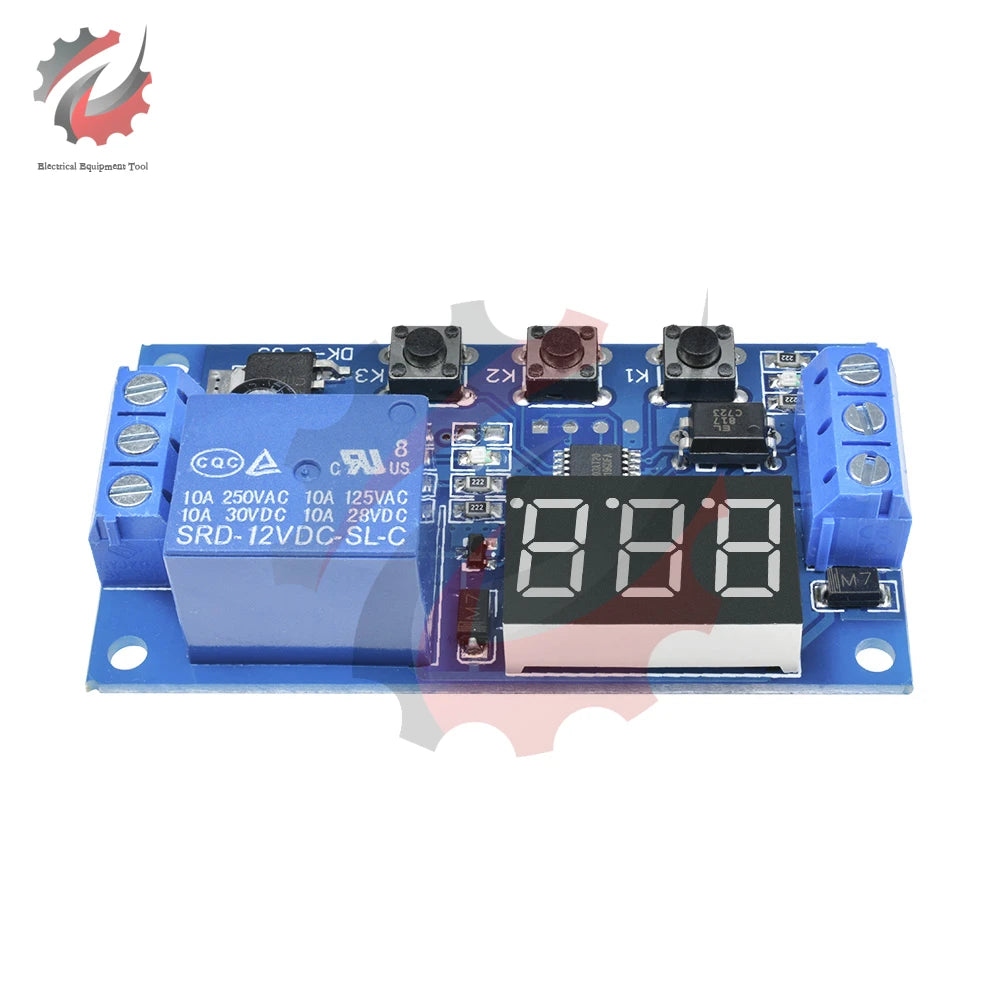

SPECIFICATIONS

Brand Name: Aideepen

Certification: NONE

Choice: yes

Contact Load: High Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Model Number: Delay Relay

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Quiescent Current: 20mA,Operating Current:50mA

Relay Specifications: AC 220V 10A or DC 30V 10A

Signal voltage: 4V~20V (if other ranges can be customized)

Theory: Time Relay

Use: General Purpose

Voltage: 24V

Working temperature: -40~85C

Working voltage: 10~16V (if other ranges can be customized)

is_customized: Yes

life: about100,000 times

semi_Choice: yes

【Fast delivery】Description :

New upgrades to simplify,to meet customer needs.

Increase the supply anti-reversefunction.

The use of opto isolated input and output,enhanced anti-jamming capabilit

consumption.

Set parameter after power for ever memories.

Signal terminal voltage signal can be maintained for a longtime.

to ensure stability,industrial grade board,class PLC.

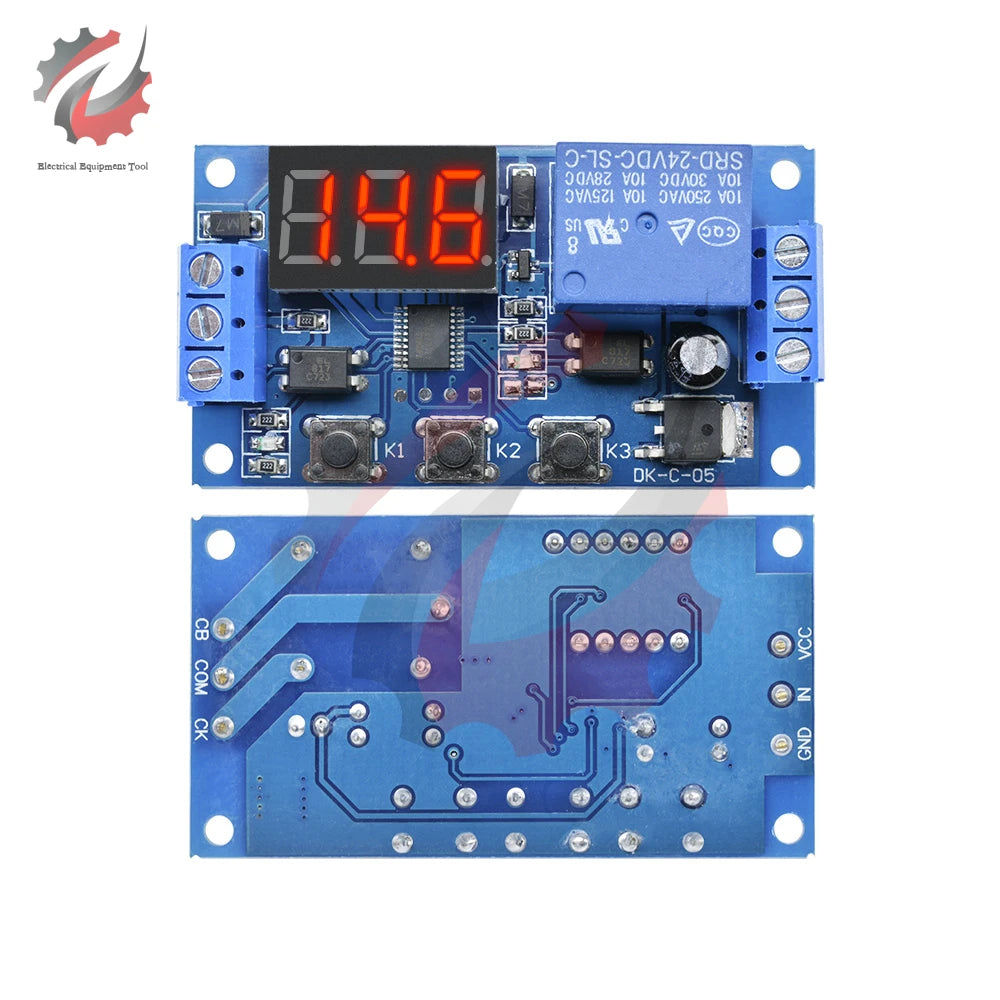

【Fast delivery】Product parameters:

Size:64.2mm*34.8mm*18.5mm.

Relay Specifications:AC 220V 10A or DC 30V 10A.

Quiescent Current:20mA,Operating Current:50mA.

Working voltage:10~16V (if other ranges can be customized).

Signal voltage:4V~20V (if other ranges can be customized).

life:about100,000times,Working temperature:-40~85'C.

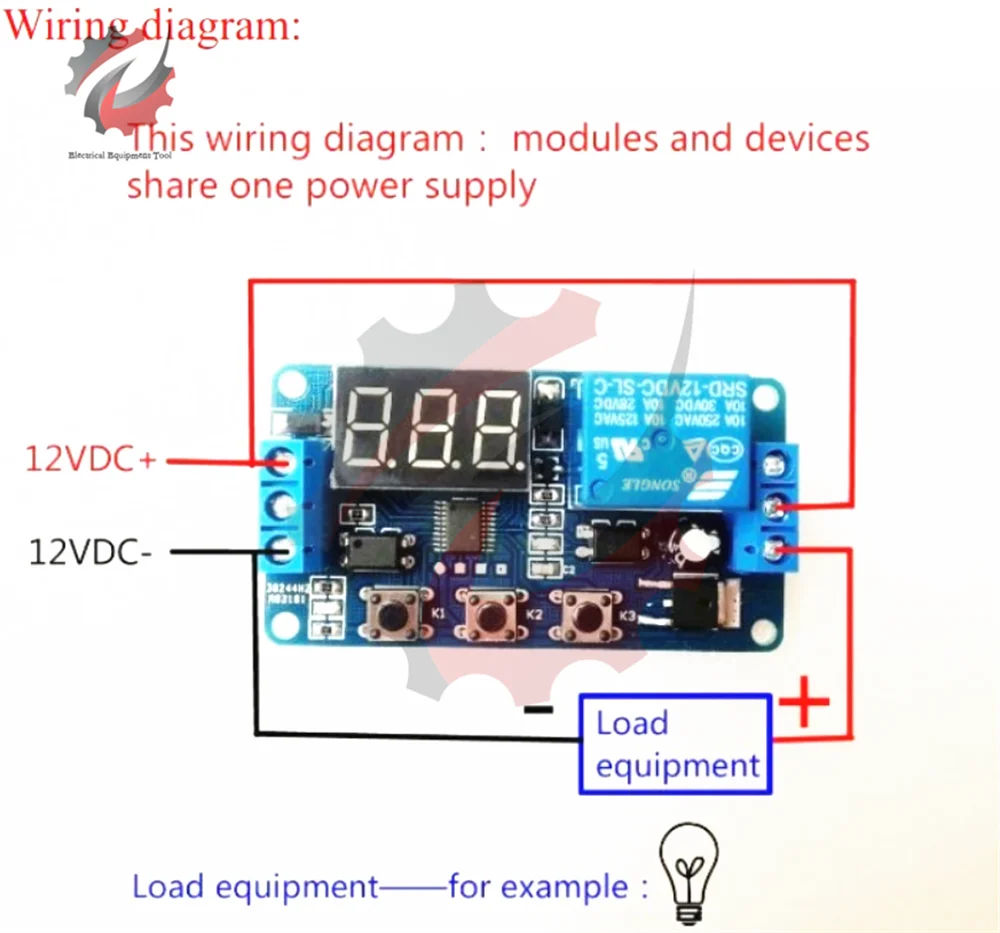

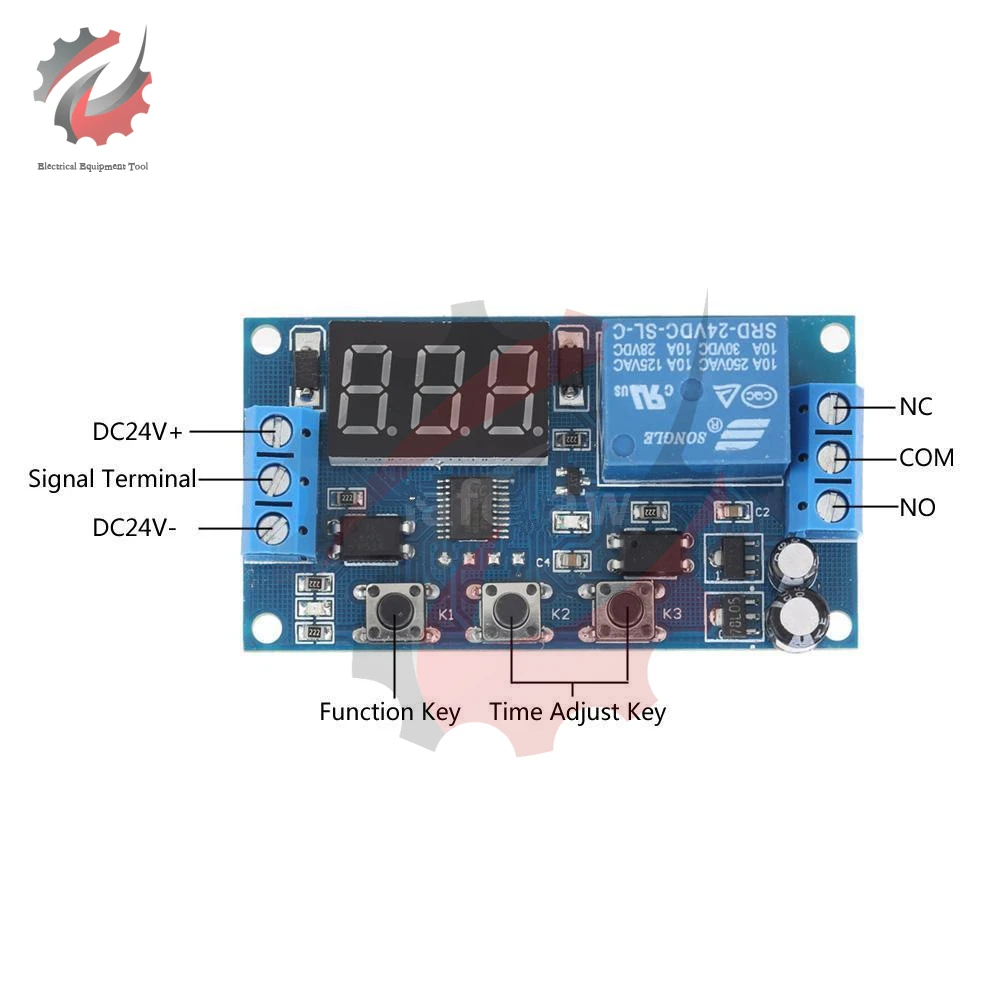

selection:After power on,long press K12 seconds later into the select function mode,P1-1~P1-4forchoose.

P1-1 operating modes:a signal to trigger relay, time is up,the relay

disconnect users,You can set relay time T,click K2 the hundreddigital

tube starts flashing,then press K3, the hundred digital change;click K2

ten digital tube starts flashing,then press K3,ten digit changes;click K2

bit digital tube starts flashing, then press K3, single-digit change;then

click K2,; digital pipe does not blink,then press the K3, shifting the

decimalpoint,the decimalpointin abitindicates 0-999minutesin ten

represents 0 to 99.9 seconds withou tadecimalpointrepresents 0-999

seconds;goodchoice,bringing the time setting is completed.Short press

K1,enterfunction offine-tuning settings,triggerthedefaultdelayperiod

is invalid, press K1, during the delay trigger active(re-timing),clickon

the K1, during the delay reset (timer turned off,the relay reset) press

again to repeat the default settings for the first time.

P1-2 operating modes:Asignal trigger ,digital countdown begins,X

seconds after,there lay open Y seconds,then close.Users can set the relay

time X,Y;P1-1different time settings similar to the blue lights that set

the relay time,blue light indicates setting relay off time. Short press K1,

enter function offine-tuning the set,the default trigger is invalid during

the delay,pressK1,during the delay trigger active(re-timing),then click

the first repeat default settings.

P1-3 operating modes:Open X seconds,disconnect Yseconds, infinite

loop.Users can set the relay timeX,Y;time setting similar to P1-2.Short

press K1,enter function offine-tuning set,The default function is:set up

an electric circuit the relay first open, press the K1,there lay first

close.Press again to repeat the default functionality.

P1-4 operating modes:a signal to trigger the relay open but do not start

the timer,when the trigger signal disappears,digital count down begins,X

time after,the relayclose; During the delay,again to the signal,digital

count down canceled, stays energized, the signal disappears, restart

count down; (equivalentto release the button to start timing, commonly

usedin power-offdelay).Users canset the relay time X; time setting similar to P1-1.

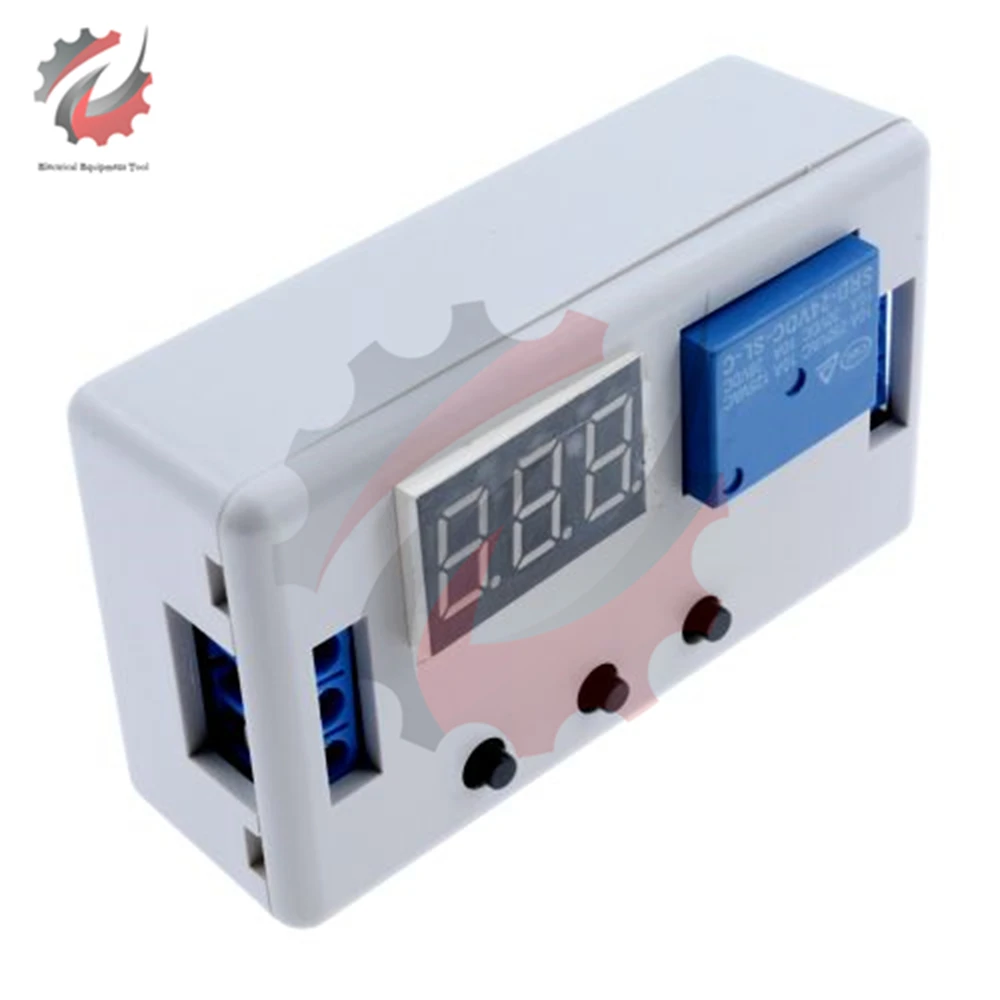

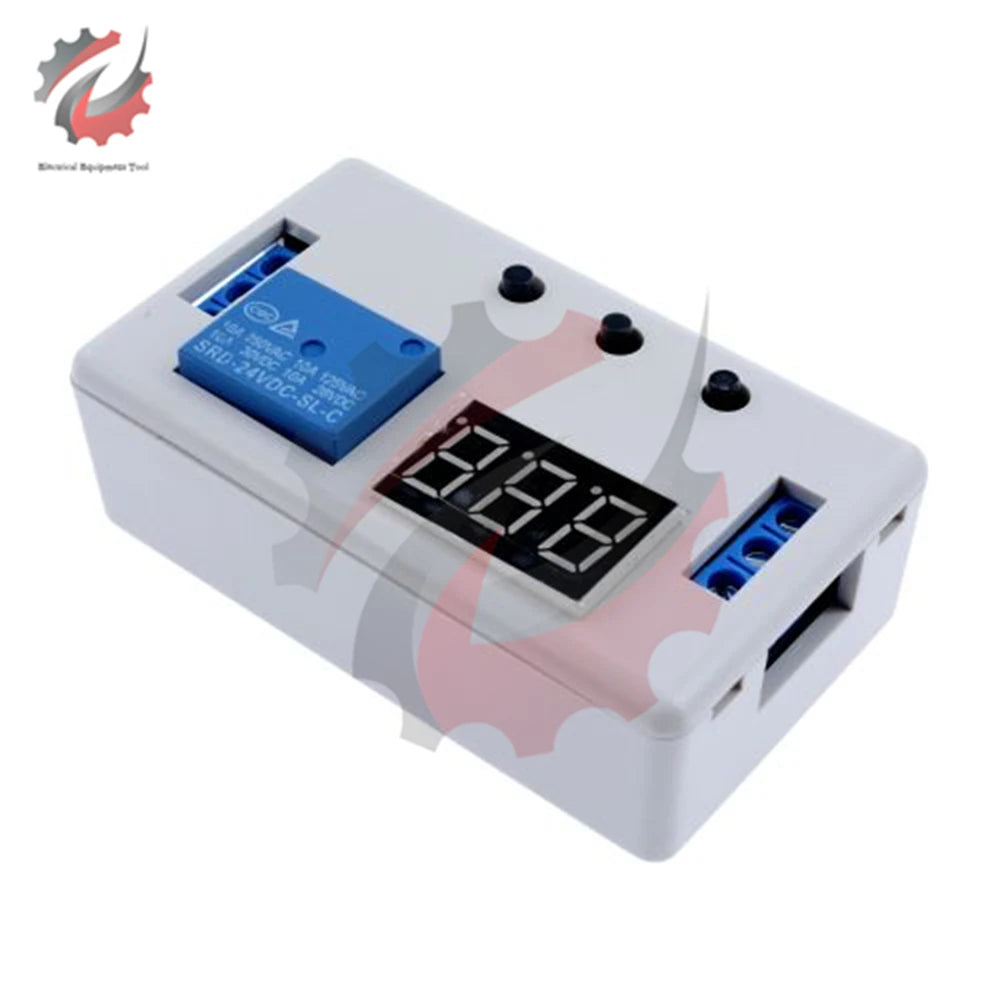

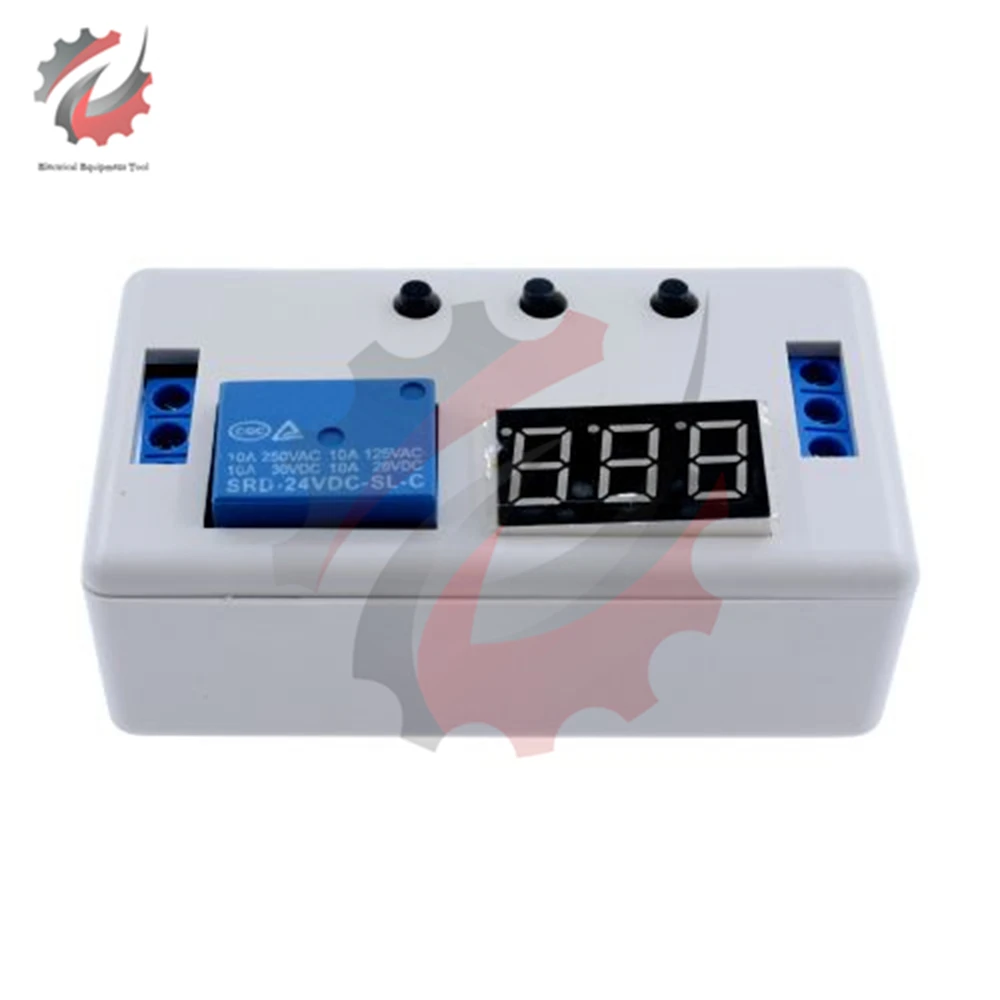

【Fast delivery】Package:

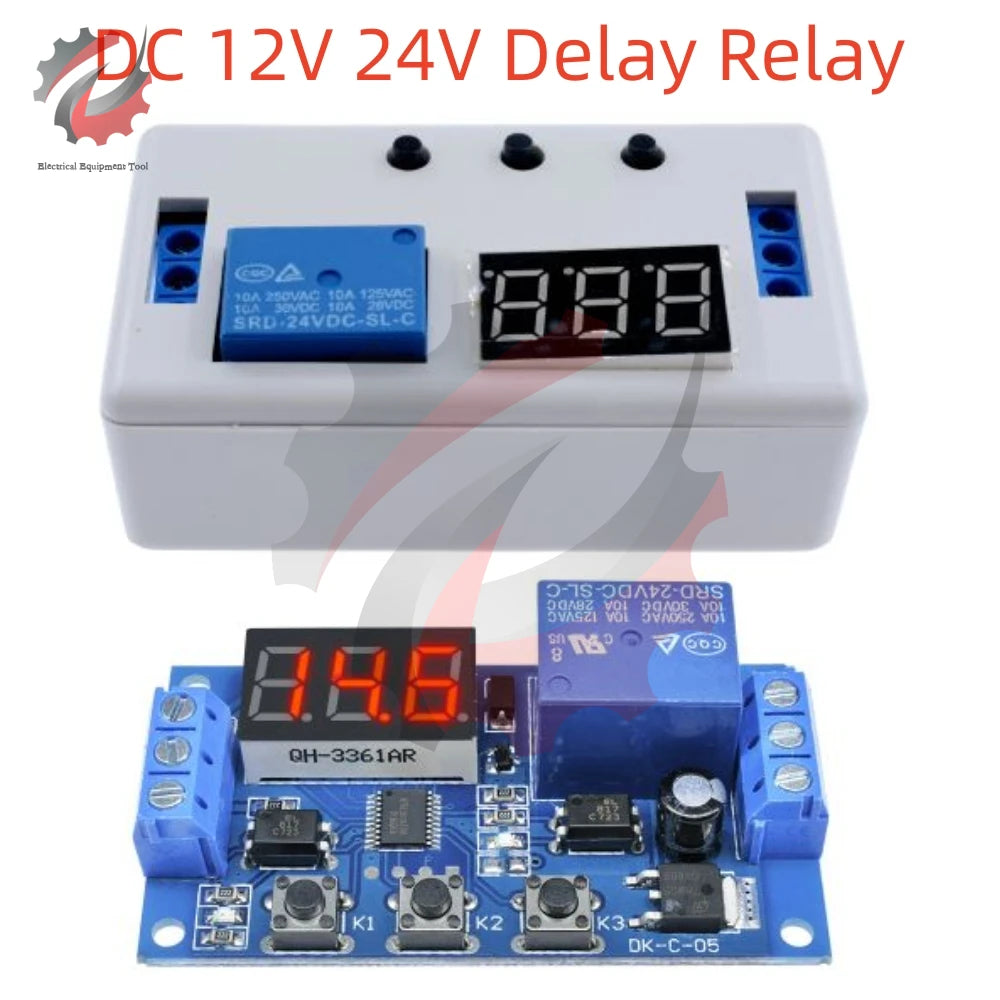

1PCS x1 x DC12V 24V Delay Timer Control Switch Module
