5Pcs/Lot PV Connector Waterproof IP67 10A 15A 20A 30A Diodes Use for Solar Panels Module Parallel Connection Protection Amps
5Pcs/Lot PV Connector Waterproof IP67 10A 15A 20A 30A Diodes Use for Solar Panels Module Parallel Connection Protection Amps
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Origin: Mainland China
semi_Choice: yes
Contact us now to get an attractive discount !!!
Products details :

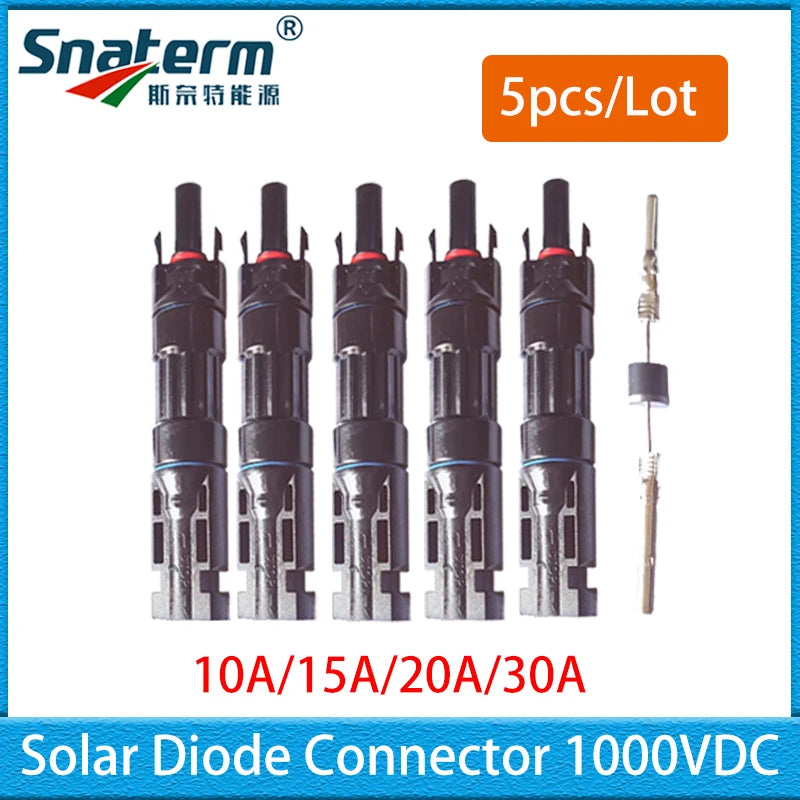

A lot = 5 PCS

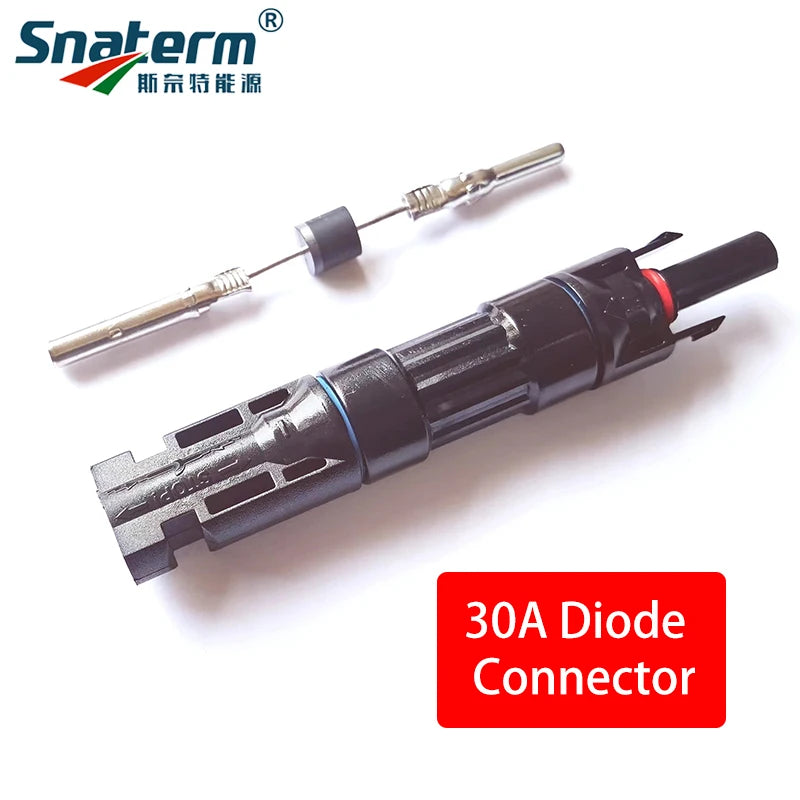

Diode Current :30A/ 20A /15A /10A for choice.

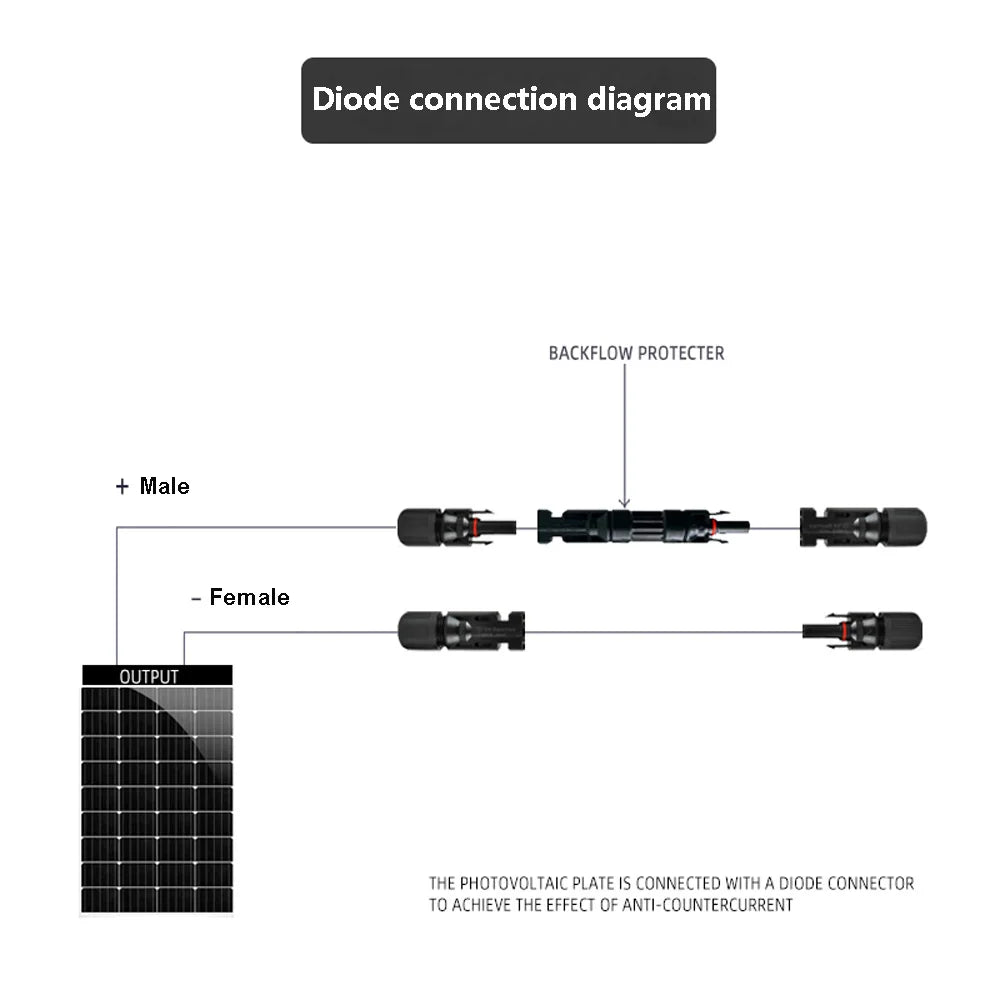

Easy , quickly and reliable connection of the solar cables to the photovoltaic system (solar panels, converters).
|
保险丝座 Technical Data技术参考 | |
|
额定电流 Rated current : 10A 15A (According to the FUSE) |
保护等级 Degree of protection: IP2*/IP67 |
|
额定电压 Retaed voltage: 1000V DC |
阻燃等级 Flame class : UL94-V0 |
|
测试电压 Test voltage: 6000V(50Hz,1min) |
安全型 Safety class: II |
|
过电压类型/污染指数 Overvoltage category/Polution degree:CATIII/2 |
插入力/拔出力 Insertion force/withdrawal force:≤50N/≥50N |
|
连接器接触电阻 Contact resistance of plug connectosr: 0.5mΩ |
接线方式 压接 Connecting System: Crimp connection |
|
连接器导体材料 铜,镀银 Contact material: Copper,Ag Plated |
工作温度范围 Temperature range: -40~+125℃ |
|
连接器绝缘材料 Insulation material : PPO |
|

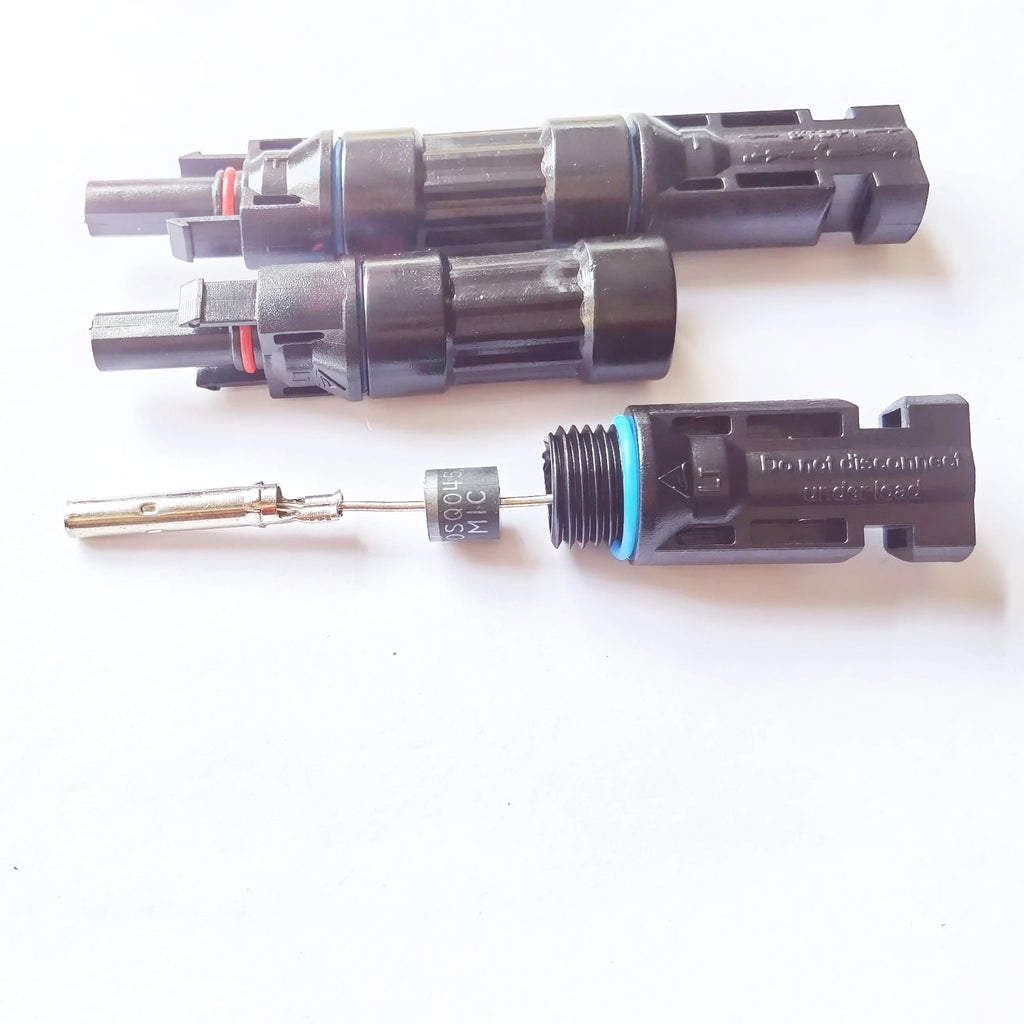

5pcs/lot Solar Panel PV Connectors with Built in Diode
